Description

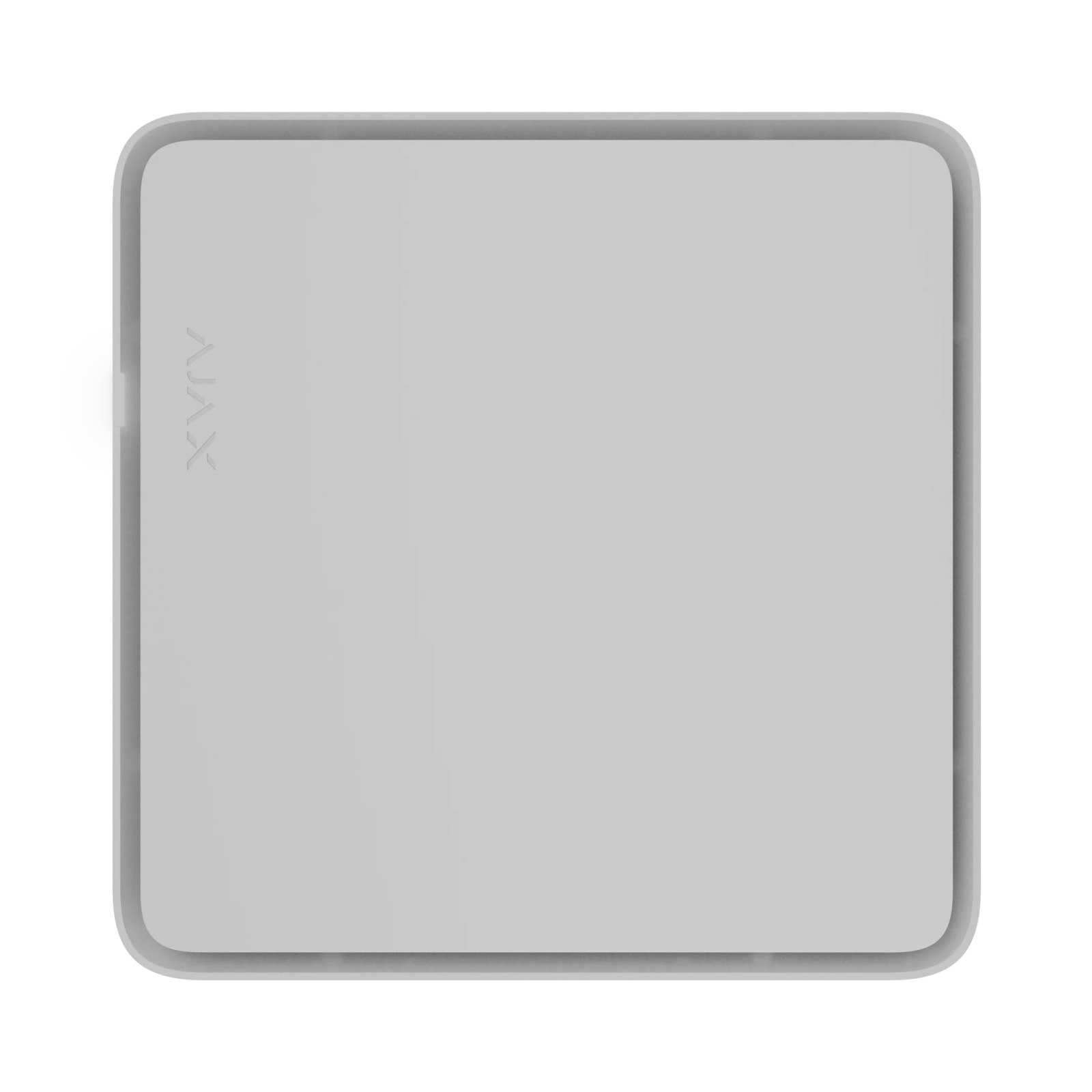

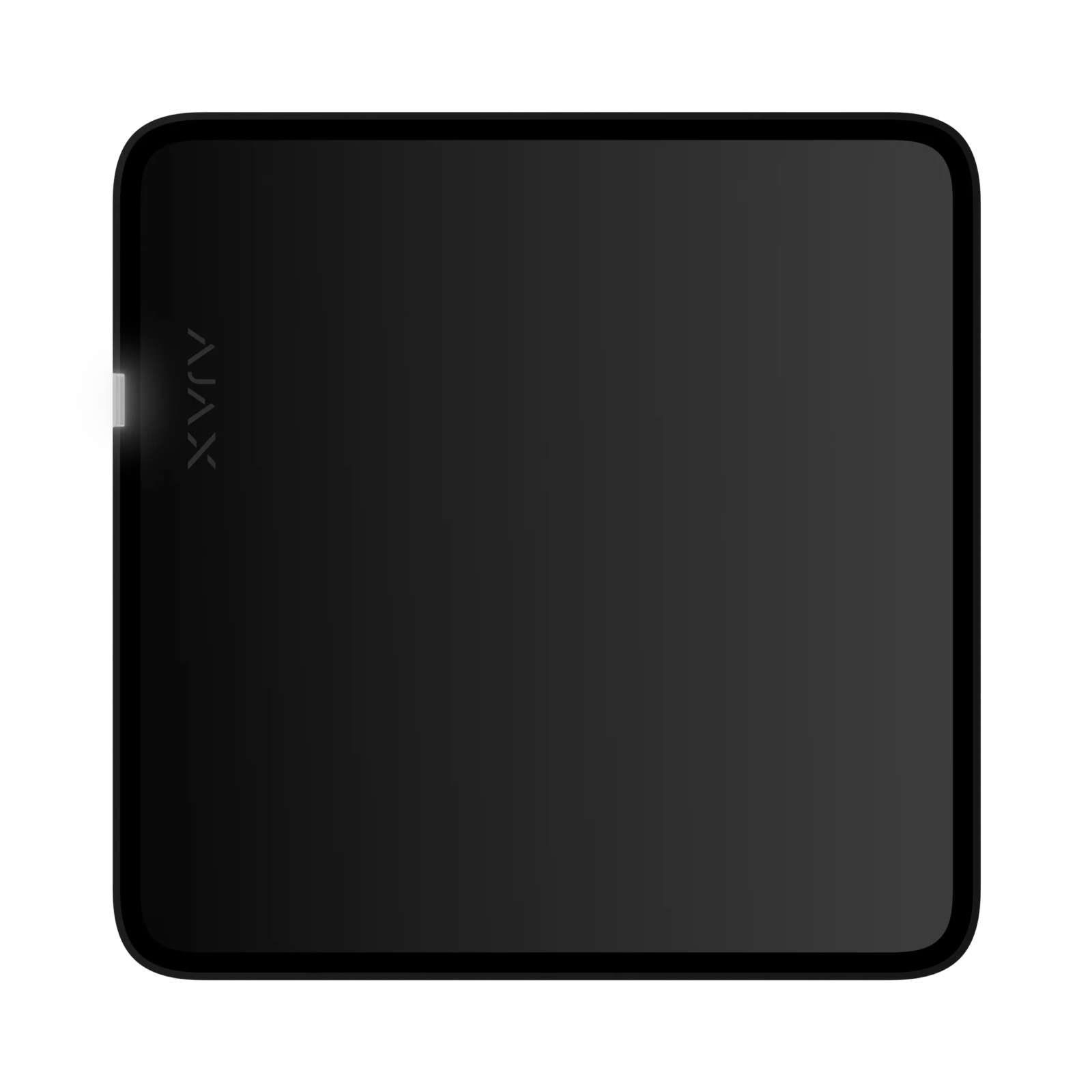

Ajax NVR HAC 8-Channel with HDMI Output

The Ajax NVR HAC 8 Channel is a smart and compact network video recorder designed for reliable local and remote video surveillance. It is ideal for smaller CCTV systems that need centralised recording, HDMI monitor output and smooth integration into the Ajax ecosystem. Users can watch live footage, review recordings and manage connected cameras through Ajax apps or directly on a display connected to the recorder.

A key advantage of the NVR H series is its HDMI output, which allows footage from connected cameras to be viewed locally on a monitor or TV, even if the recorder is not connected to the internet. This makes it a practical choice for sites that want on-site viewing in addition to app access.

The recorder supports Ajax video devices as well as compatible third-party IP cameras using ONVIF and RTSP protocols. With a storage capacity of up to 16TB, motion detection options, video wall support, archive export and video scenarios, it offers a flexible recording platform for homes, offices and light commercial installations.

Easy integration through ONVIF and RTSP

Upgrade and retrofit existing setups with Ajax video solutions. Integrate Ajax video devices with third-party systems via ONVIF and RTSP protocols directly in Ajax apps — no workarounds, no extra steps. A built-in wizard tool simplifies configuration by automatically retrieving all necessary network data. Bring an Ajax-level video management experience to any system, all complete in just minutes.

Key features

HDMI output for local viewing

Connect the recorder to a monitor or TV for live view and playback directly on-site. Local display output remains available even if the internet connection is unavailable.

8-channel recording

Designed to support up to 8 connected camera channels, making it well suited to smaller surveillance systems.

Ajax and third-party camera support

Works with Ajax video devices and third-party IP cameras that support ONVIF or RTSP.

Flexible recording and playback

Watch live streams, review archive footage, export recordings and manage video through Ajax apps or directly through the connected display.

Built for practical installation

Includes two USB 2.0 ports and support for one storage drive up to 16TB. It is intended for indoor installation.

Technical specifications

• Video input: 8 channels
• Video output: HDMI
• Supported cameras: Ajax video devices, ONVIF cameras and RTSP cameras
• Recording resolutions: 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
• Storage: 1 × SATA drive up to 16TB, storage drive not included
• USB ports: 2 × USB 2.0 Type-A
• Network connection: Ethernet
• Installation: Indoor use only

Applications

• Home CCTV systems
• Offices and reception areas
• Shops and small business premises
• Ajax systems requiring video verification and local monitor viewing

What’s in the box

• Ajax NVR HAC 8 Channel recorder
• SmartBracket mounting panel
• Power cable
• Ethernet cable
• Installation kit
• Quick start guide

Surveillance Hard Drive sold separately
