Description

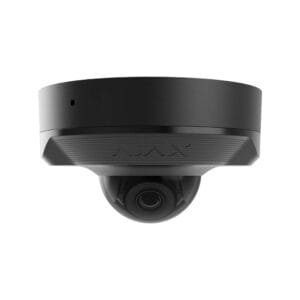

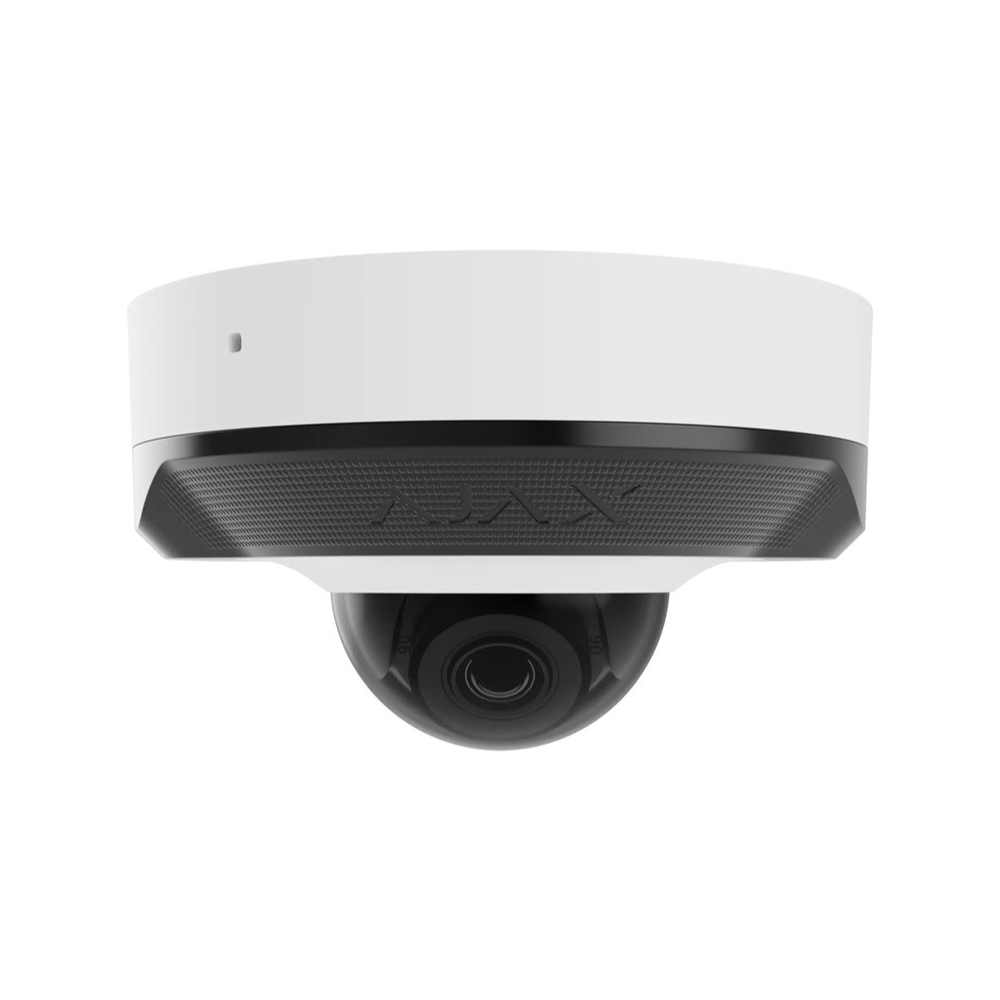

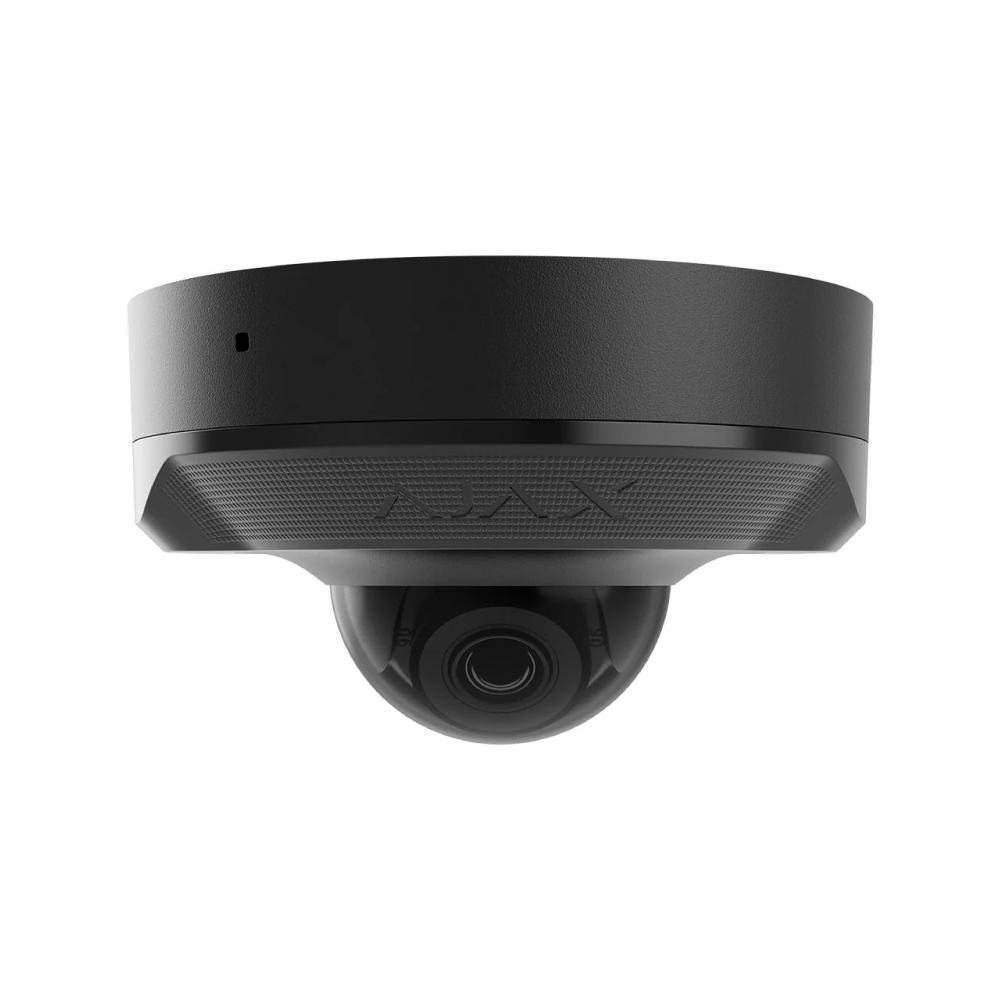

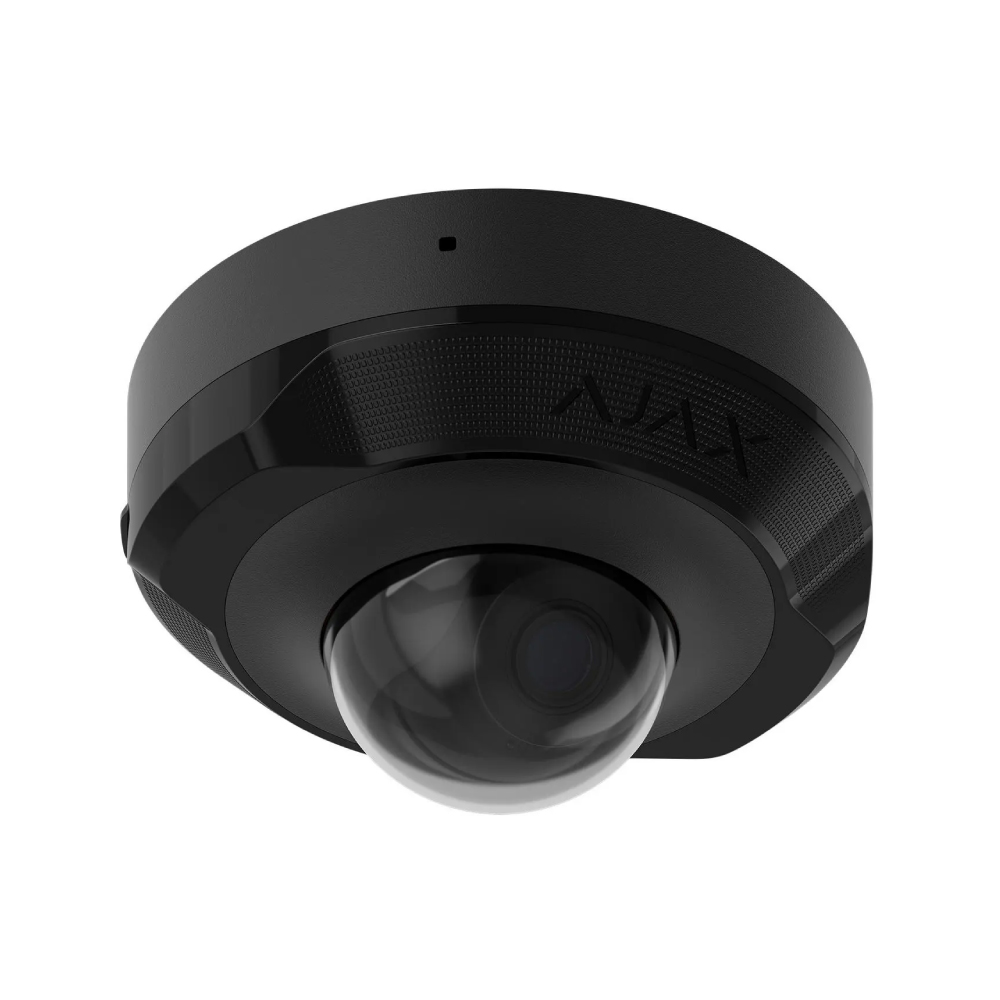

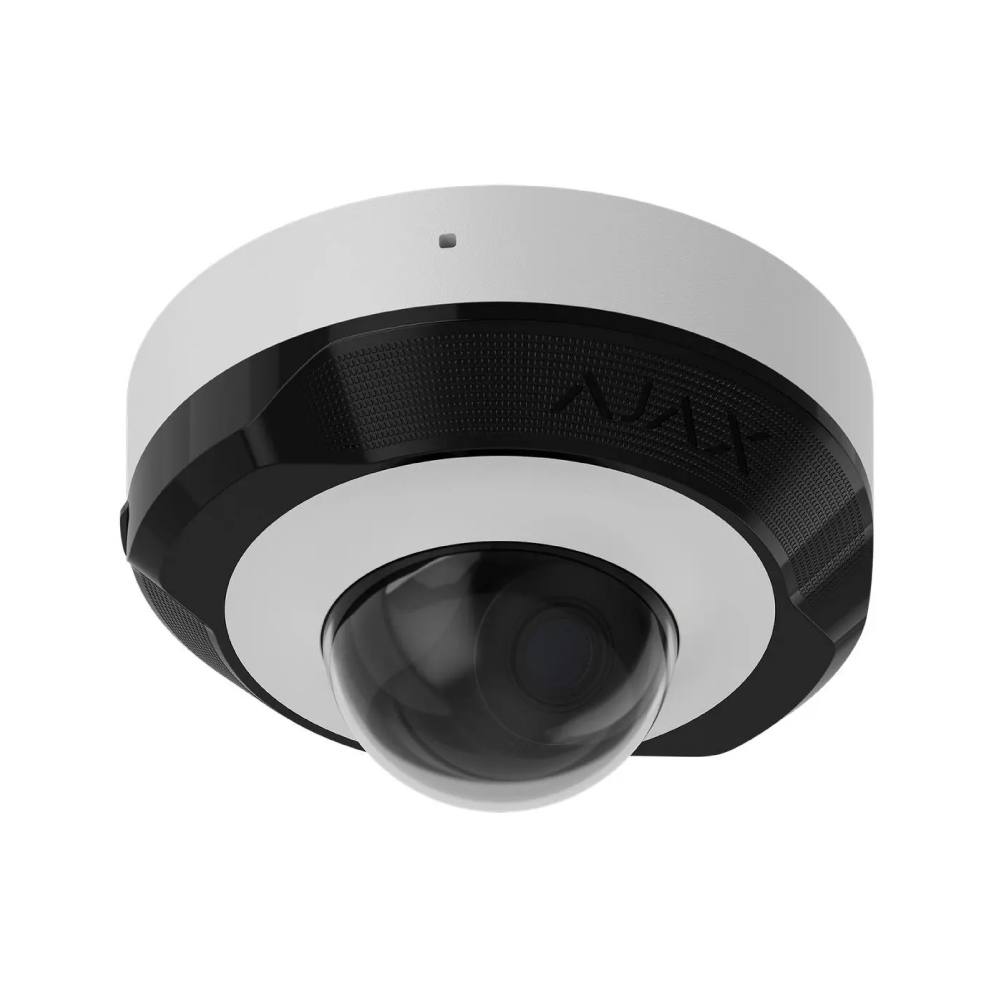

Ajax DomeCam Mini 8MP (2.8mm & 4mm Lens options) – PoE Wired Cameras (not wireless)

The DomeCam Mini is an IP camera that uses artificial intelligence (AI) for object detection. Its algorithms can detect moving objects and distinguish between people, animals or vehicles. Users can view archived and online videos in Ajax applications. To save the captured data, install a microSD card or connect the camera to Ajax NVR using an installed hard drive.

The device features an intelligent IR backlight that enables high-quality recording even in low-light conditions. The camera automatically adjusts the backlight intensity in real time to avoid overexposure, thereby enabling clear visibility of objects that are either too far away or too close to the camera in low-light conditions.

Key Features of Ajax DomeCam Mini 8MP

• Resolution: 8MP (3840 × 2160 px)
• Viewing Angle – 2.8mm Lens: 100°-110° | 4mm Lens: 75° to 85°
• Type: Wired PoE (Power over Ethernet) camera
• AI Object Detection: Detects and differentiates between humans, animals and vehicles.
• Intelligent Infrared Backlight: IR illumination up to 35m with real-time automatic intensity adjustment for clear recording in low-light conditions.
• Video Storage Options: Supports microSD cards up to 256GB or NVR (Network Video Recorder) for video archiving (storage not included).
• Real-Time & Archived Video: Watch live video and zoom in; access recorded footage based on event chronology.
• Customisable Motion Detection Zones: Focus on key areas, reducing false alarms.
• Video Scenarios: Automatically activate cameras via Ajax detectors; video sent directly to the app.
• Video Wall: Display and manage multiple cameras, switch views, and search by camera name.
• Encrypted Communication: Uses JetSparrow encrypted peer-to-peer protocol.
• Microphone: G722 Codec
• Power Supply: 12V ⎓ with PoE (Power over Ethernet)
• Weatherproof: IP65-rated protection; operates in temperatures from −25°C to +40°C.
• Privacy Settings: Configure access for users and security companies to view video feeds.
• Compact Design: Dimensions 113 × 60 mm, weight 360g.

DomeCam Mini offers the following possibilities:

• Watch the video in real time, with the ability to zoom in to enlarge.
• Access to archived videos with the ability to navigate through them based on a recording chronology and calendar (this feature is available when a microSD memory card is installed in the camera or the camera is connected to NVR via an installed hard drive).
• Configure motion detection zones and adjust sensitivity levels.
• Display the video wall which combines the images from all connected cameras.
• Create video scenarios that send a short video from the selected camera to the Ajax app when a detector is triggered.

Video scenarios

The Ajax system provides the ability to use IP cameras for alarm verification. Video scenarios allow supporting alarm triggers with corresponding videos from cameras installed in the facility.

Cameras can be configured to respond to alarms from a single device, multiple devices, or all connected devices. Combined detectors can register multiple types of alarms, allowing you to configure responses to a variety of alarm types, whether it’s just one, multiple, or all alarms.

Video wall

The user can manage videos on the Video Wall tab which is accessible after adding at least one camera. This feature provides quick access to all connected cameras which are displayed in accordance with the privacy settings.

The user can:

Switch between cameras.
Search for the desired camera by name.
Get updates for camera thumbnails.
Change the display order

Privacy settings

The user can configure access to view video from shared cameras and extend this ability to other users and the security company. The user can set the conditions for video viewing: anytime when shared devices are activated or only within a certain period of time after the alarm.

Compatibility

• All Ajax hubs
• Ajax NVR (Network Video Recorder)

Video stream

• Video protocol: JetSparrow, fast and encrypted peer-to-peer video protocol developed by Ajax Systems.
• Storage: NVR, microSD (storage media not included.)
• Codec: H.265/H.264
• Dynamic range: HDR/WDR

Communication channel

• Ethernet up to 100 Mbps

Power supply

• Power supply: 12 V⎓ ± 20%, 1 A, up to 7.5 W power consumption.
• Ethernet port: PoE standard 802.3at

Protection against sabotage

• mTLS: Encrypted connection to protect data.
• Authentication: via cloud, without local access rights.
• Secure Boot: Protection against firmware spoofing.
• OTA signature verification: Secure automatic firmware update.
• Data protection: Assign access rights for users in mobile apps and for monitoring personnel in PRO Desktop.

Housing

• Dimensions: 113 × 60 x 60mm
• Weight: 360g
• Operating temperature range: from −30°C to +60°C
• Operating humidity: up to 90%
• Protection class: IP65

What’s in the Box

• Ajax DomeCam Mini 8MP (lens options of 2.8 and 4mm)
• Installation template
• Mounting kit
• Quick start guide

Ajax DomeCam Mini 8MP Tech Specs and User Manual

User Manual

2.8mm Lens

4mm Lens

Technical Specifications

2.8mm Lens

4mm Lens
